Pretreatment System
Cleaning and conversion stages prepare metal surfaces for durable powder adhesion.
JI HENG TECHNOLOGY
Powder Coating Lines & Metal Finishing Systems
Complete metal powder coating production lines with recovery, curing and conveying systems.
Custom DesignAutomated / ManualProject-Specific EnergyTurnkey Project
Request a Custom Solution
From Our Product Catalog
Documented equipment and process scope
The catalog describes electrostatic powder application with manual, automatic or combined operation. Powder that does not adhere to the workpiece can be collected for reuse through a recovery system.
Recovery efficiency depends on powder, workpiece and system configuration; catalog figures are not a project guarantee.
Equipment shown or described
- ✓Electrostatic powder application
- ✓Manual and automatic operating modes
- ✓Powder recovery
- ✓Integrated conveying and curing options
Source: JI HENG TECHNOLOGY product catalog, PDF pages 5.
View English product overview (PDF) →Metal Powder Coating
A powder coating production line configured for metal workpieces
As a powder coating equipment manufacturer, JI HENG TECHNOLOGY can plan electrostatic application, recovery, curing and conveying around metal parts, production capacity and color changes. The original brochure states powder reuse can reach 98%; this is a brochure claim, not a guaranteed figure for a new project. Final performance is set in the technical agreement.
Discuss your powder coating project →Core Subsystems
Inside the complete system
These are the engineering modules to review for this type of system. Final configuration follows the approved project scope.

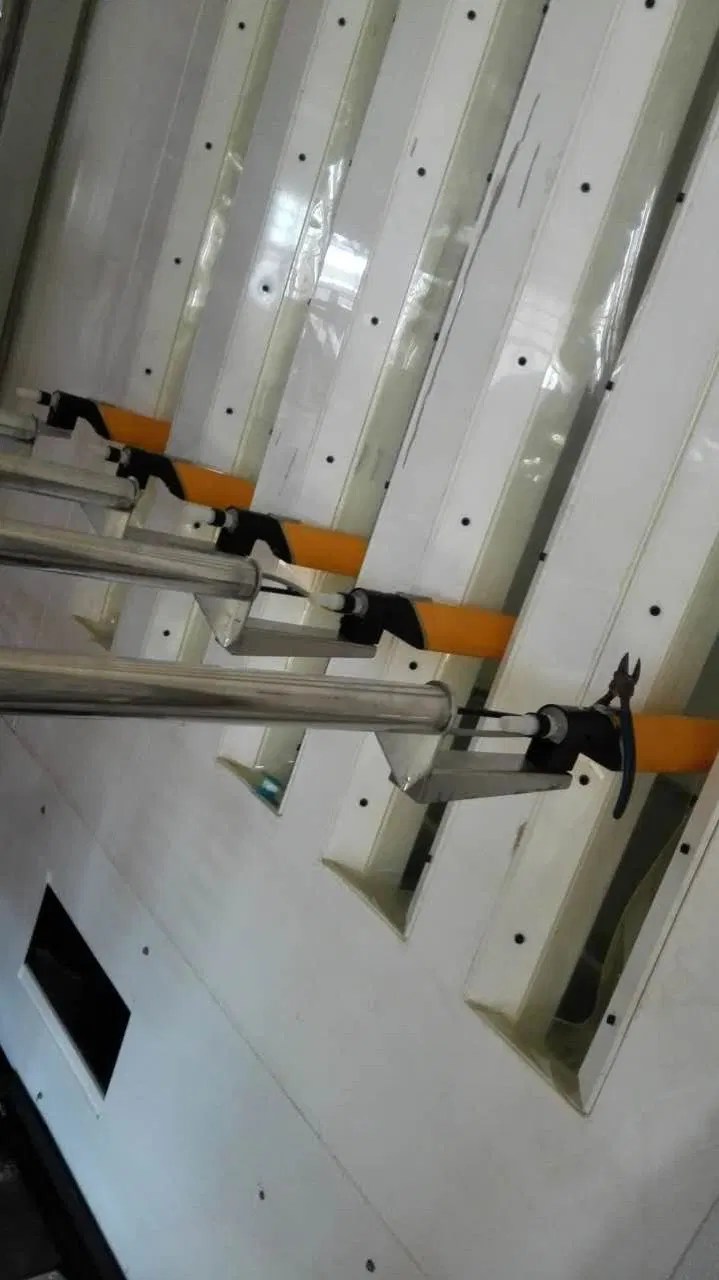

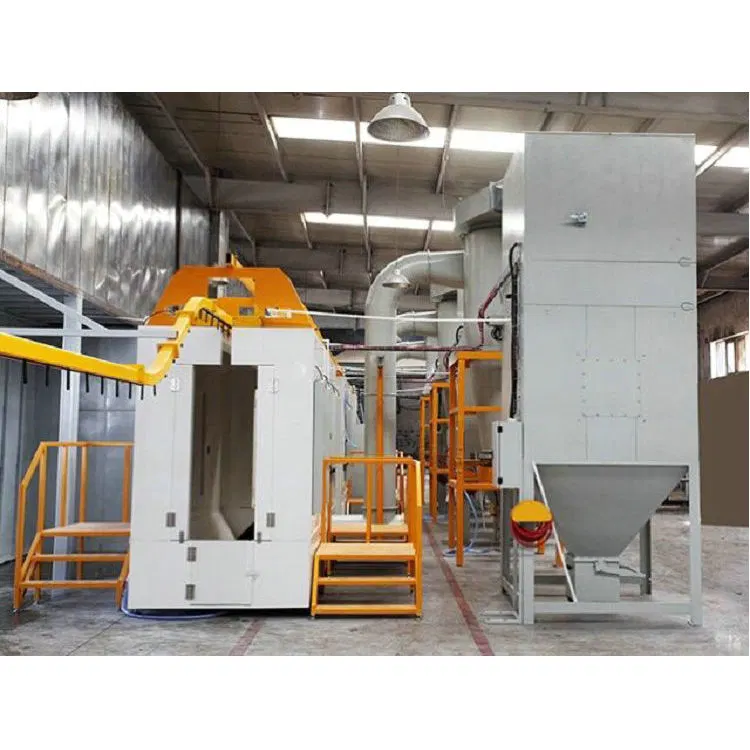

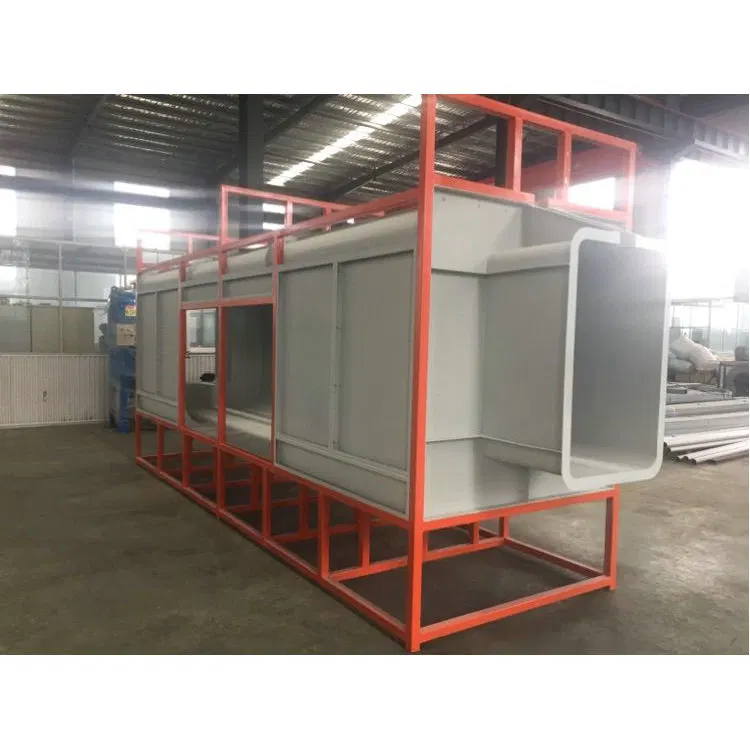

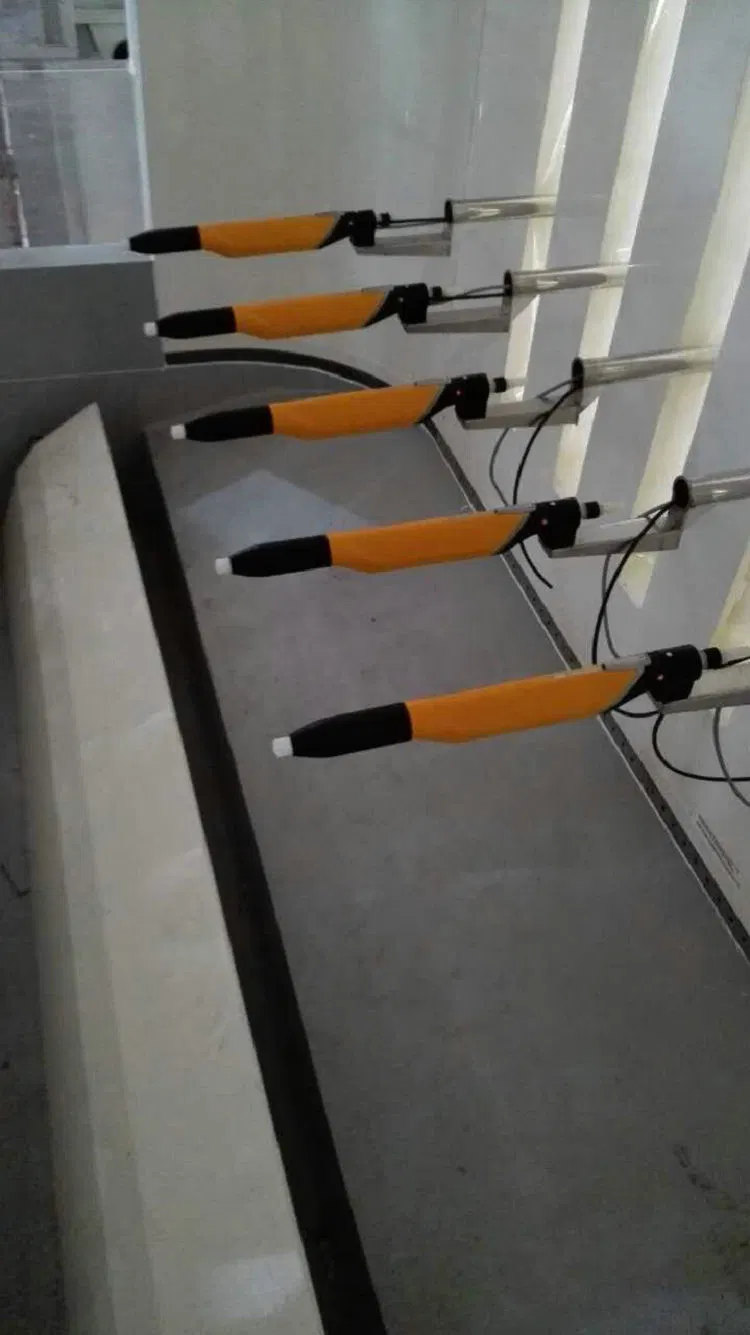

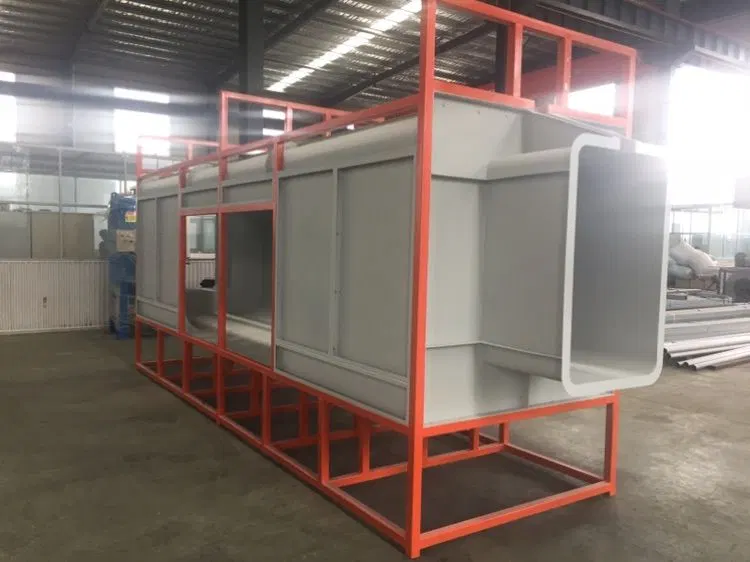

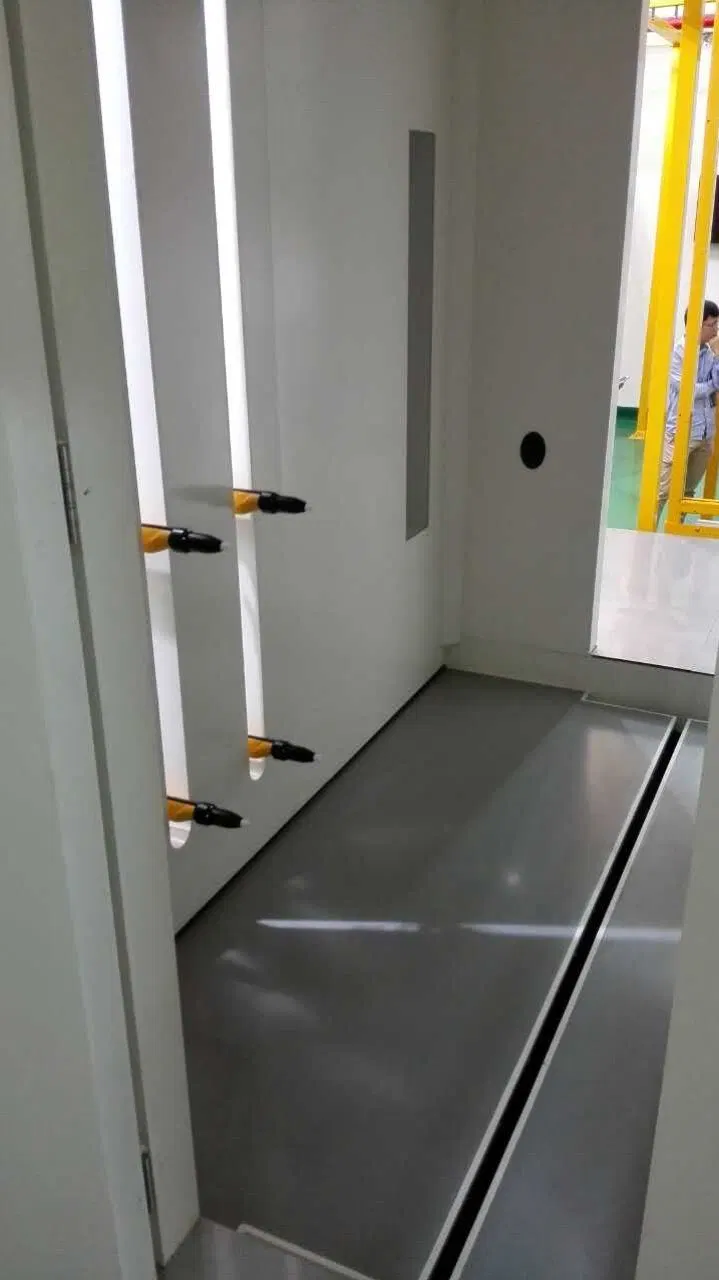

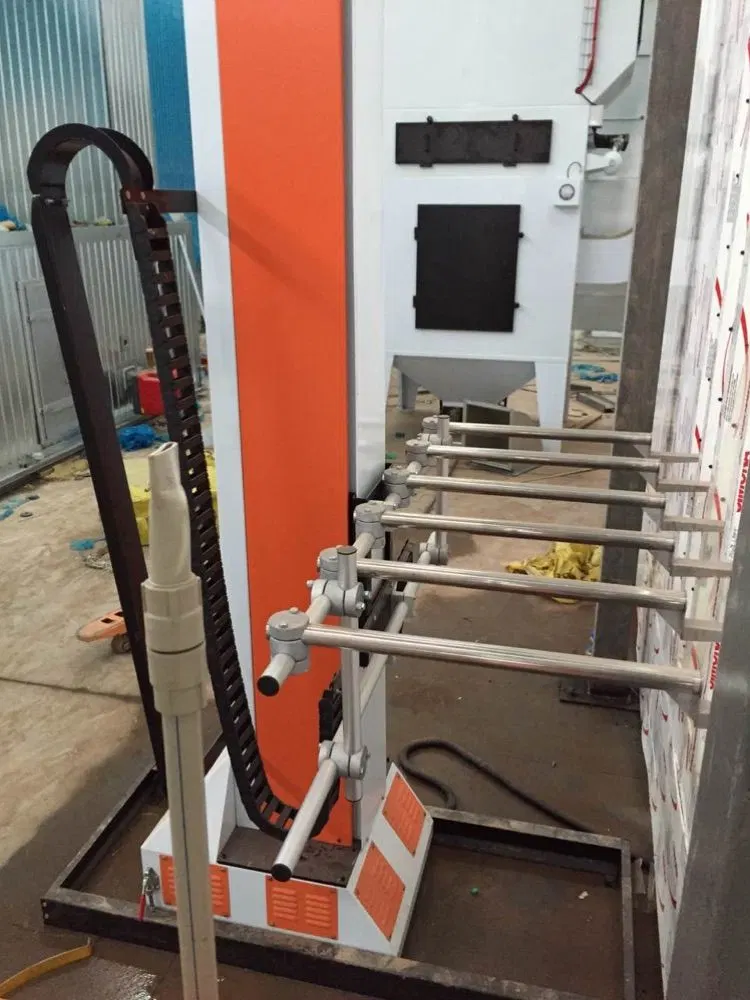

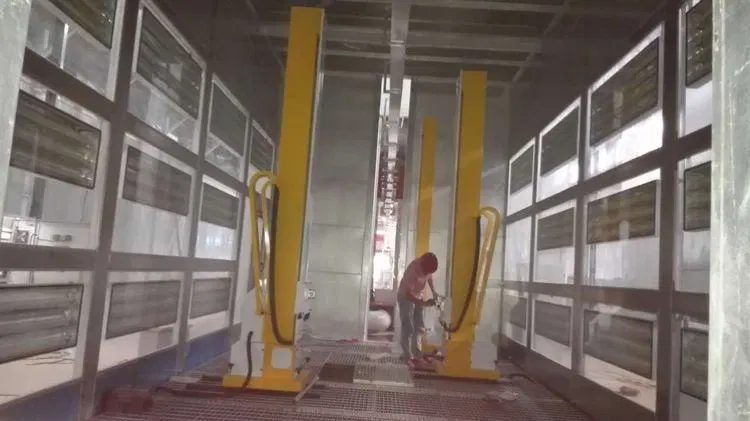

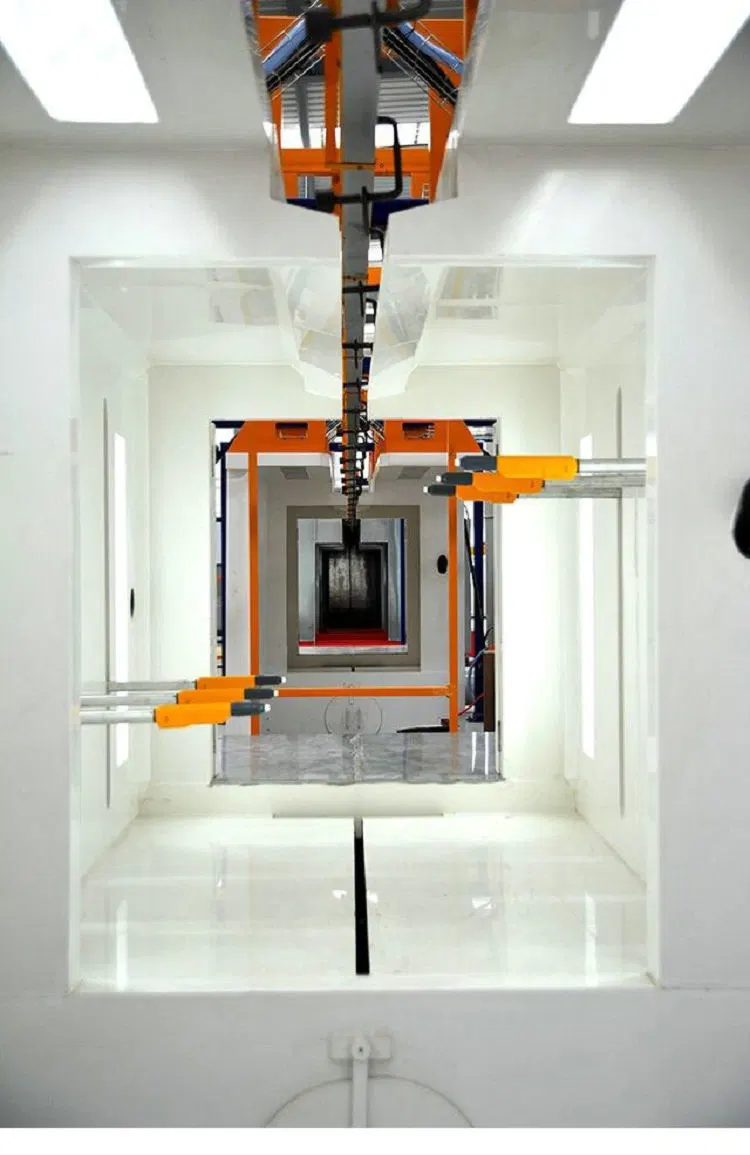

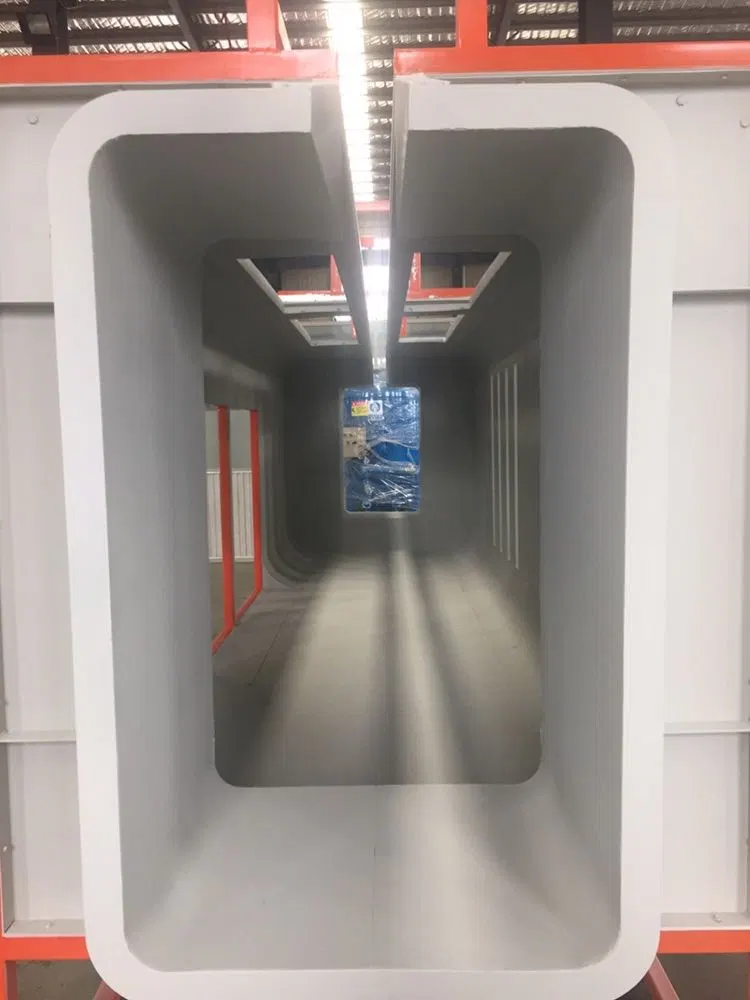

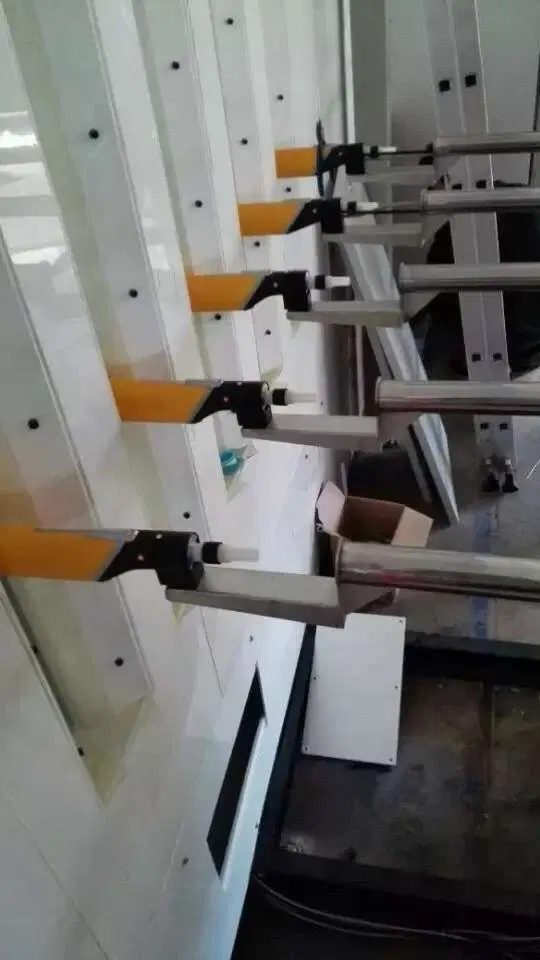

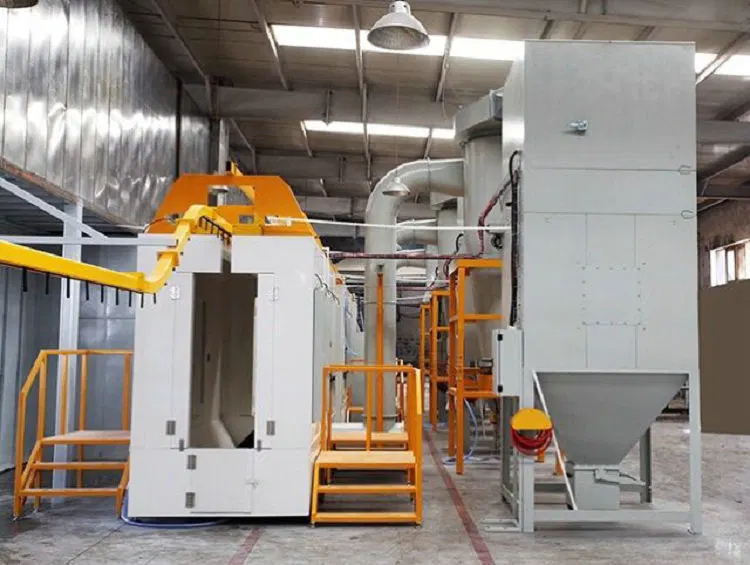

Powder Spray Booth
Manual, automatic or hybrid powder application with booth configuration selected for the product mix.

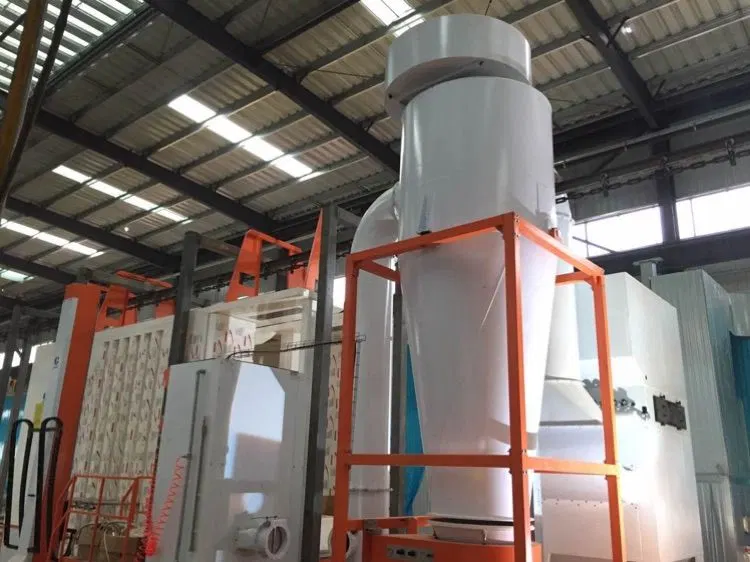

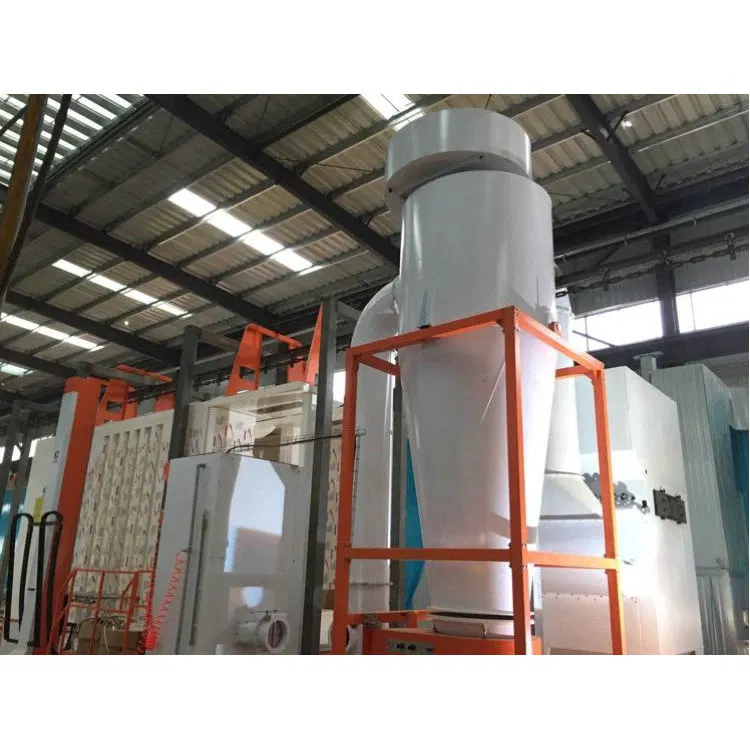

Powder Recovery
Cyclone or cartridge recovery concepts selected around color-change and operating requirements.

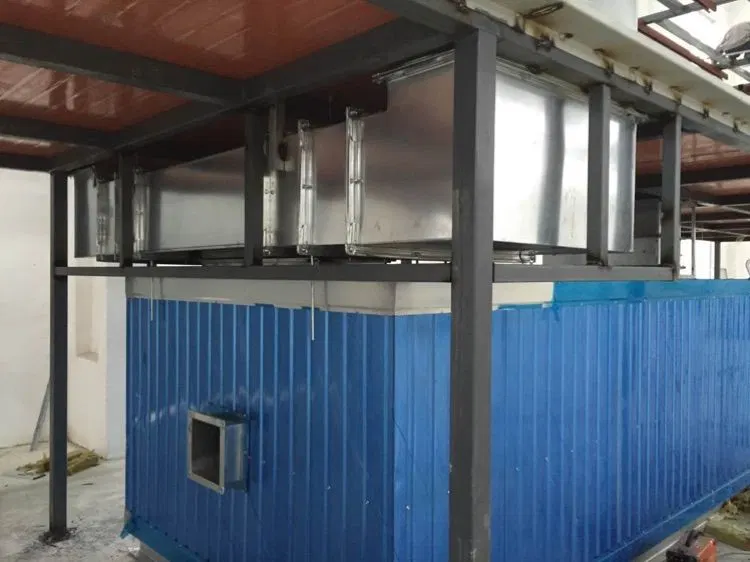

Curing Oven
Recirculated heating and insulated enclosure engineered for the specified powder cure schedule.
Conveyor System
Continuous or indexed handling designed around loading, unloading and production takt.

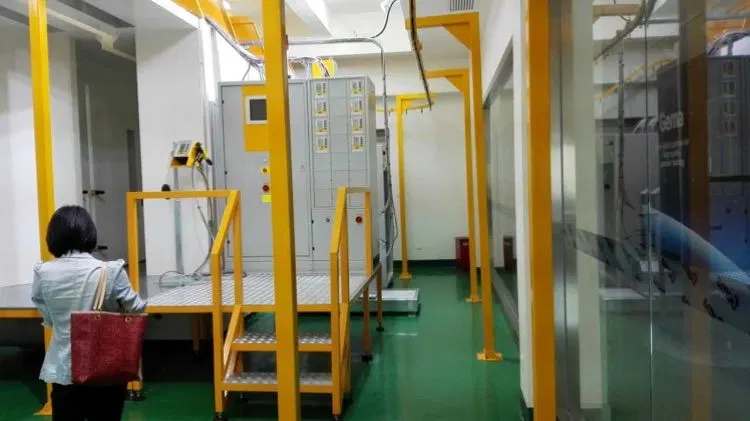

Electrical Control
Integrated temperature, conveyor and application control with alarms and safety interlocks.
Project-Specific Parameters
Configured by technical agreement
These are design inputs, not a fixed model specification. No standard dimensions, capacities or performance figures are asserted without a confirmed project drawing and calculation.
| Maximum workpiece size | Designed to the approved workpiece envelope and handling method |
|---|---|
| Production capacity | Calculated from takt time, shifts, loading and process dwell time |
| Coating and curing process | Selected for the substrate, coating material and finish specification |
| Conveying method | Overhead, floor, accumulation, indexed or custom handling |
| Energy and controls | Agreed for available site utilities and the required control platform |
| Environmental system | Selected from coating material, exhaust condition and local requirements |
The customer and engineering team confirm the destination country, installation site, applicable laws and standards, technical parameters and acceptance criteria in the signed project documents. Custom design does not by itself establish certification or legal compliance.
Applicable Workpieces
Designed around the product
Discuss the workpiece, substrate and finish with our team. These application areas are planning examples; the gallery photos may show other configurations.
Metal furniture
Automotive components
Hardware
Fabricated metal parts

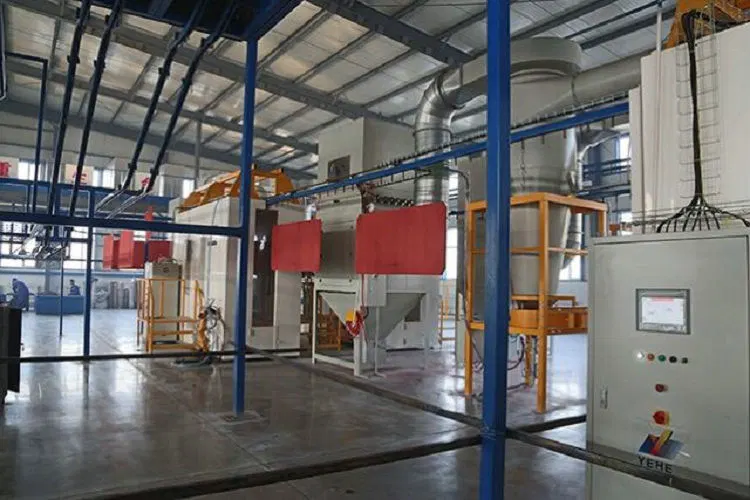

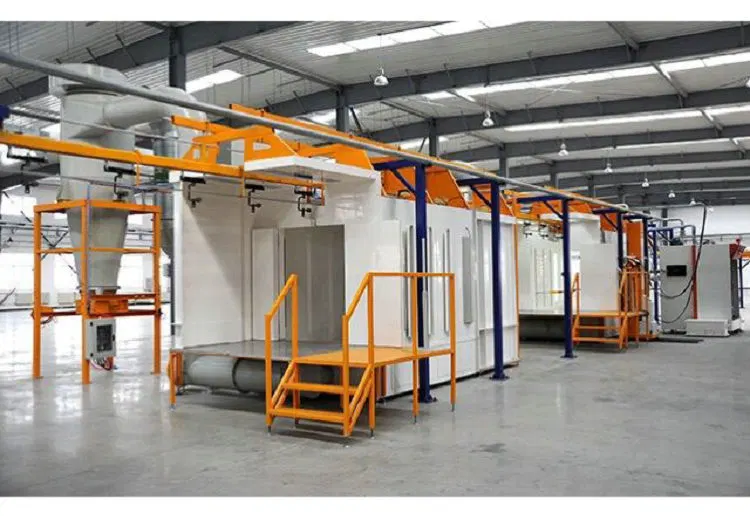

Product Gallery
More views of this equipment series
Selected photos from the supplied product image library. These views may represent different projects and configurations.
Related Equipment References
See more documented views before requesting a design
These classified equipment photographs come from the supplied image library. Customer identity, installation date and process settings are not yet verified as case-study data.
Technical Evaluation
Request Engineering ScopeBring your requirements to our engineering team
Request a project-specific layout and engineering scope for internal evaluation.
Planning powder coating lines?
Send us your workpiece or process details, production target and factory layout for an application-specific proposal.
