Robotic Painting Lines

Automated painting cells and lines designed for repeatability, transfer efficiency and control.

Custom DesignAutomated / ManualProject-Specific EnergyTurnkey Project
Request a Custom Solution
Robotic Painting Lines equipment viewRobotic Painting Lines equipment viewRobotic Painting Lines engineering detail
From Our Product Catalog

Documented equipment and process scope

The catalog includes robotic equipment inside non-standard spray rooms, automation control cabinets and non-standard automation examples. A robotic painting line combines these functions through an approved project design.

Equipment shown or described

  • ✓Non-standard spray rooms
  • ✓Robot application zones
  • ✓Control cabinets
  • ✓Conveying interfaces
  • ✓Environmental extraction

Source: JI HENG TECHNOLOGY product catalog, PDF pages 7, 17, 19.

View English product overview (PDF) →
Core Subsystems

Inside the complete system

These are the engineering modules to review for this type of system. Final configuration follows the approved project scope.

MODULE 01

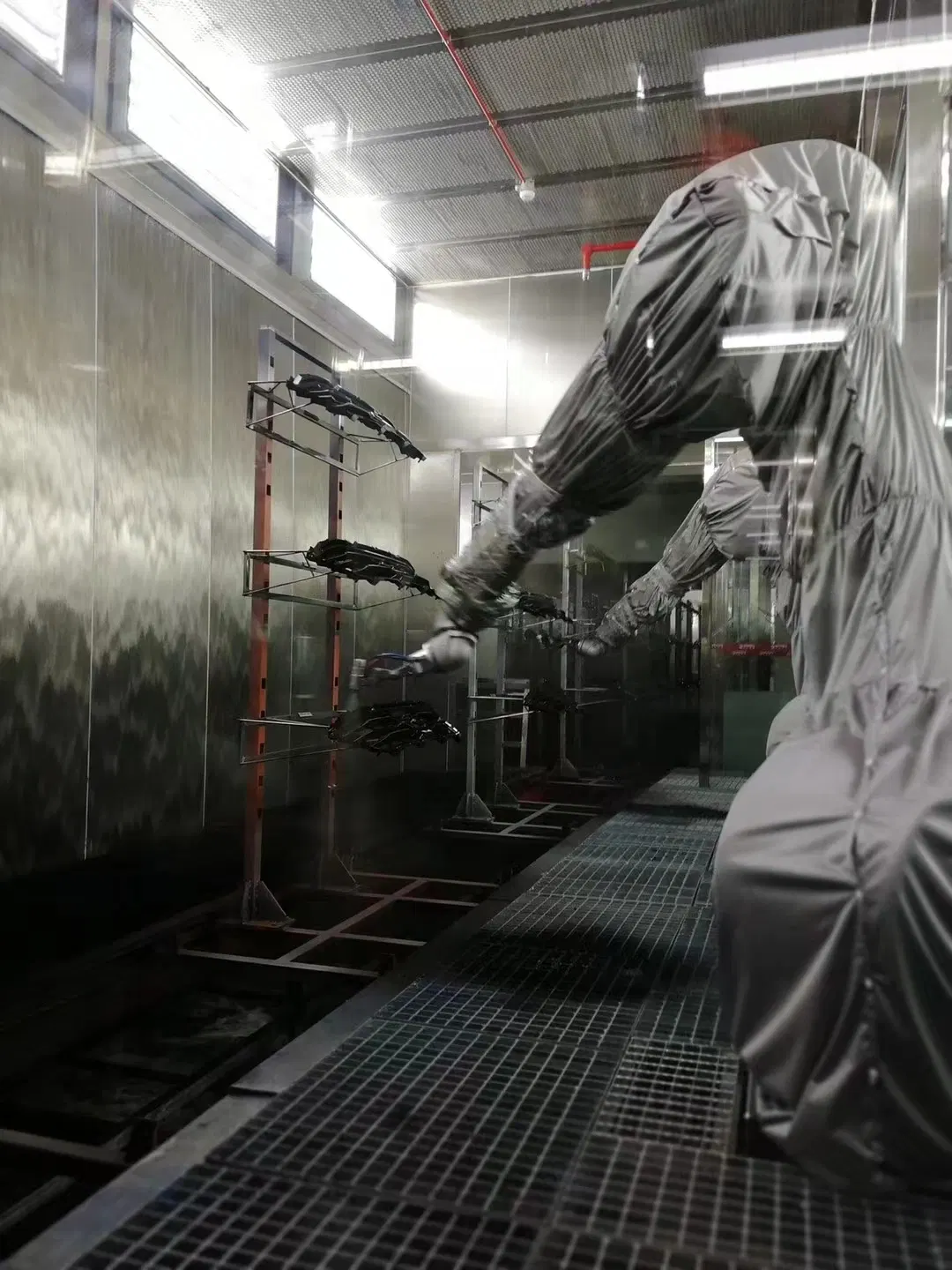

Robot & Positioning

Robot quantity, reach and positioning are selected around part geometry and cycle time.

MODULE 02

Spray Booth

Application enclosure, airflow and filtration coordinated with robot motion and paint process.

MODULE 03

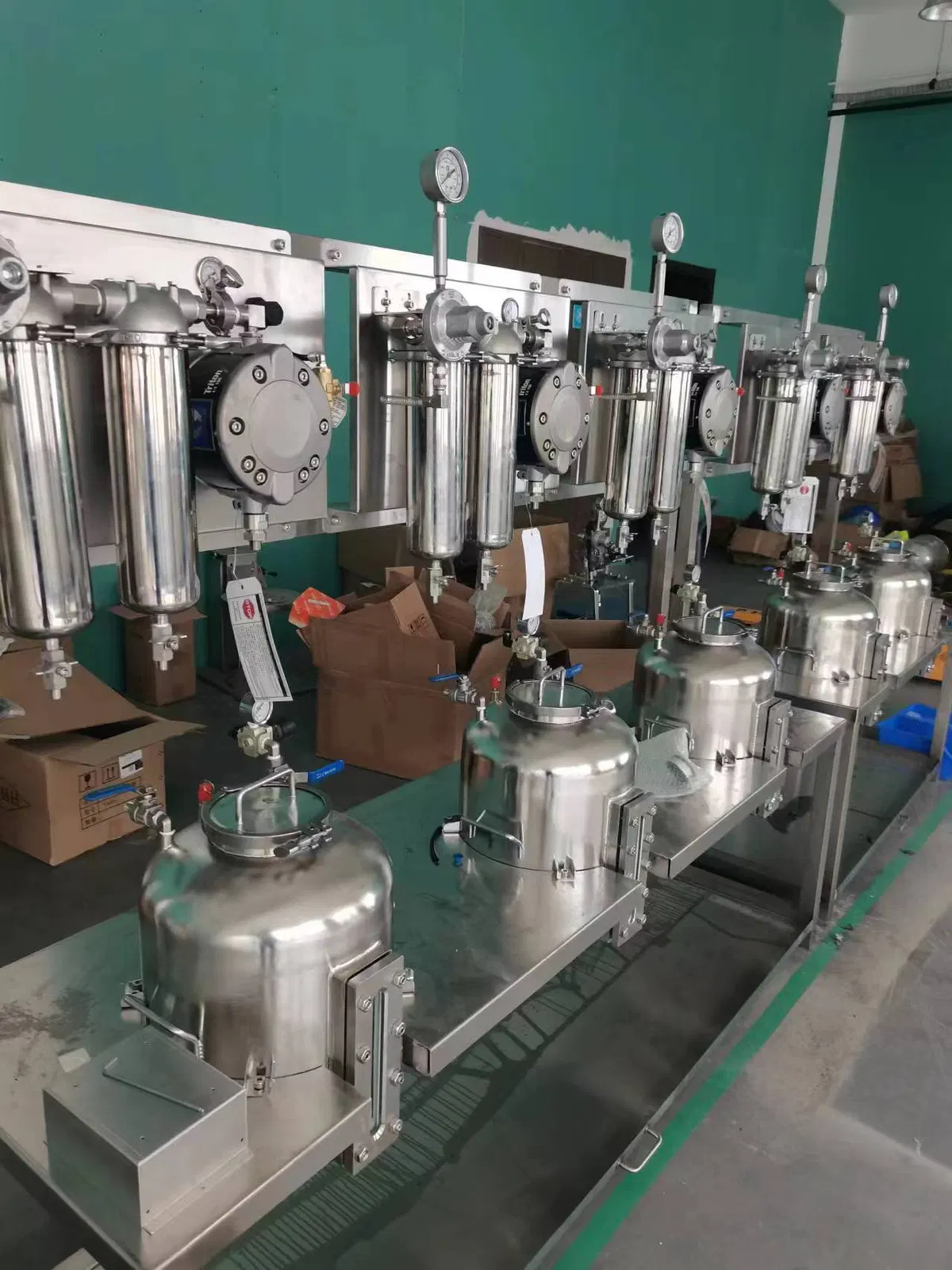

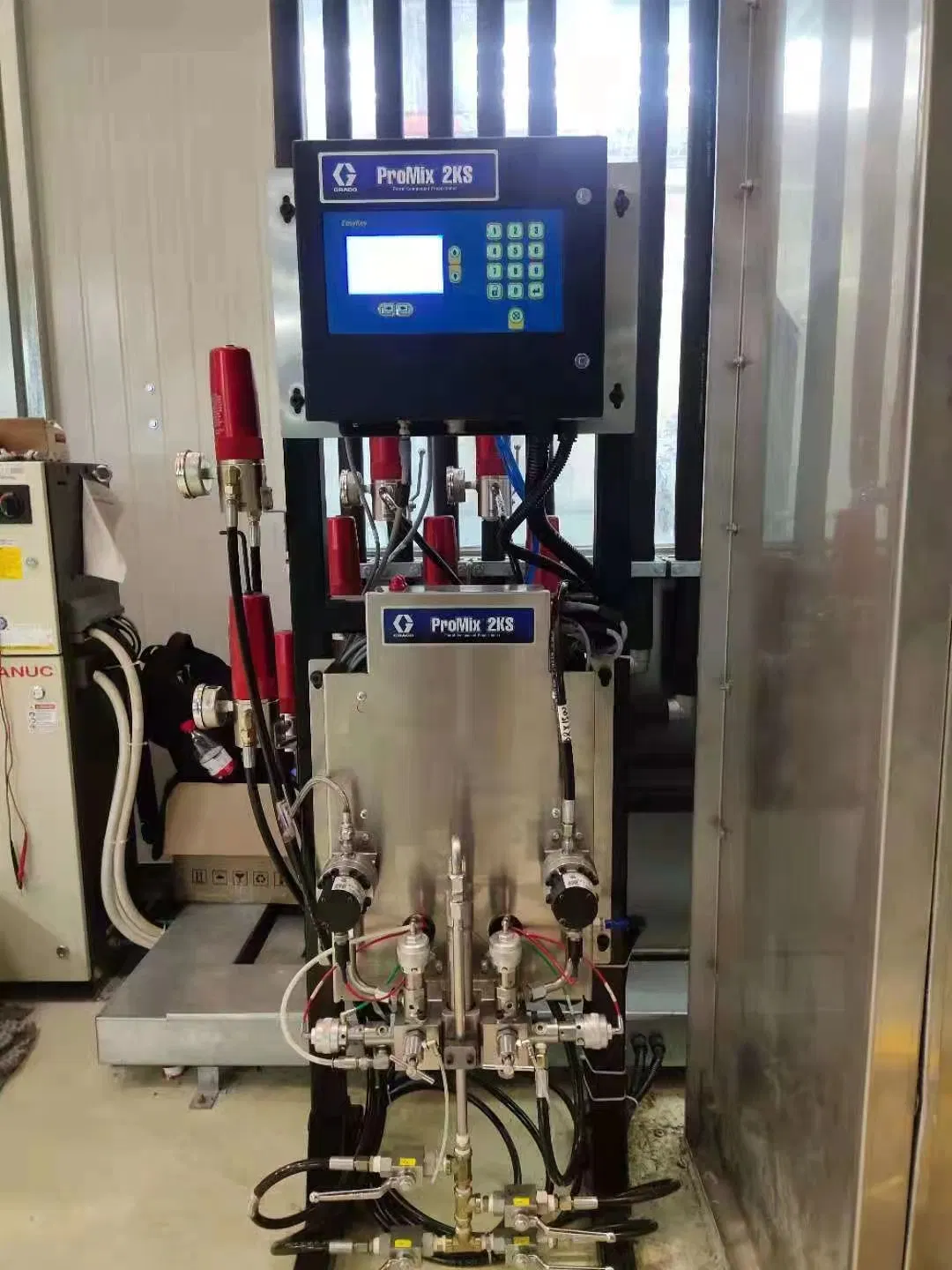

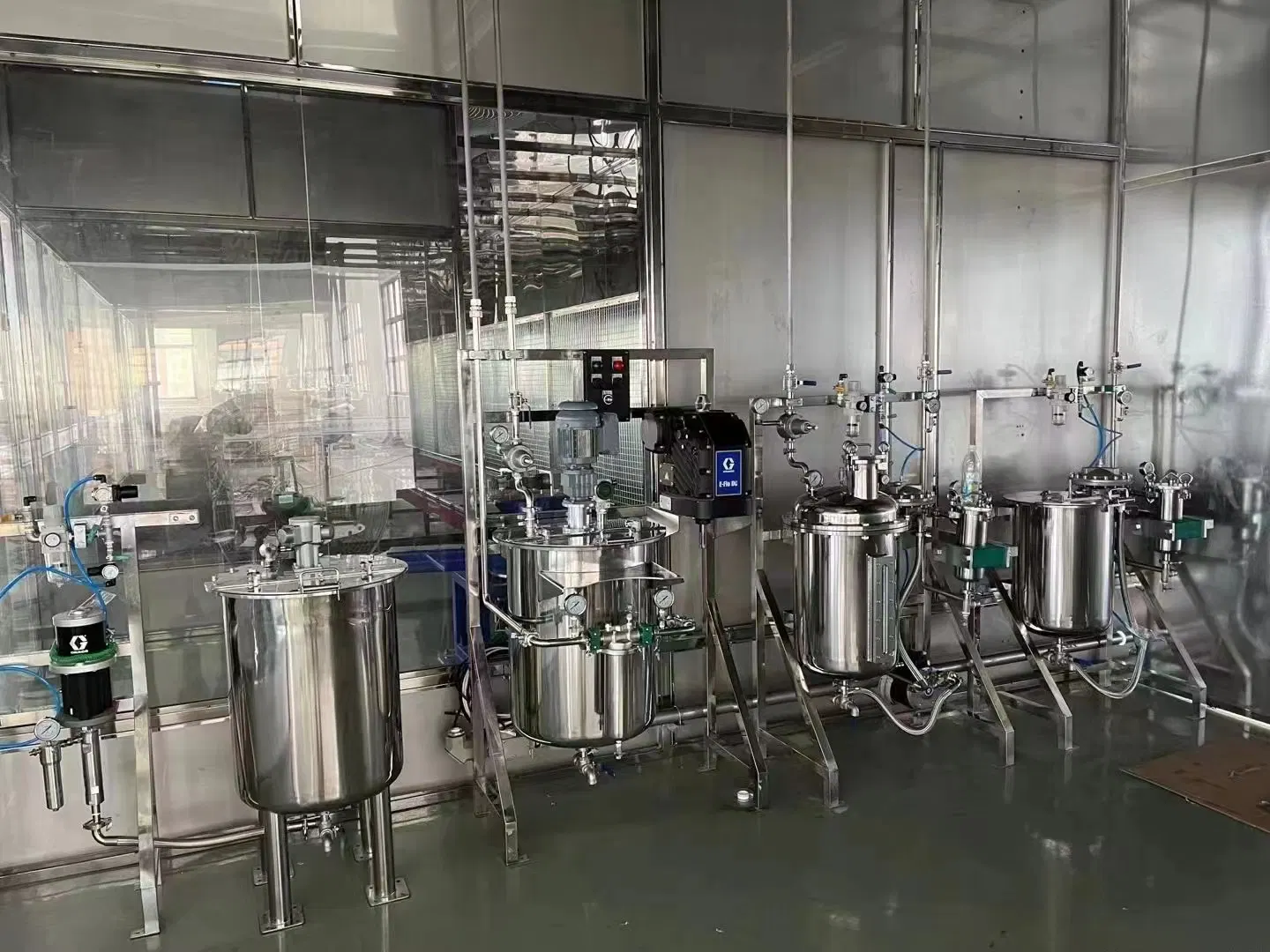

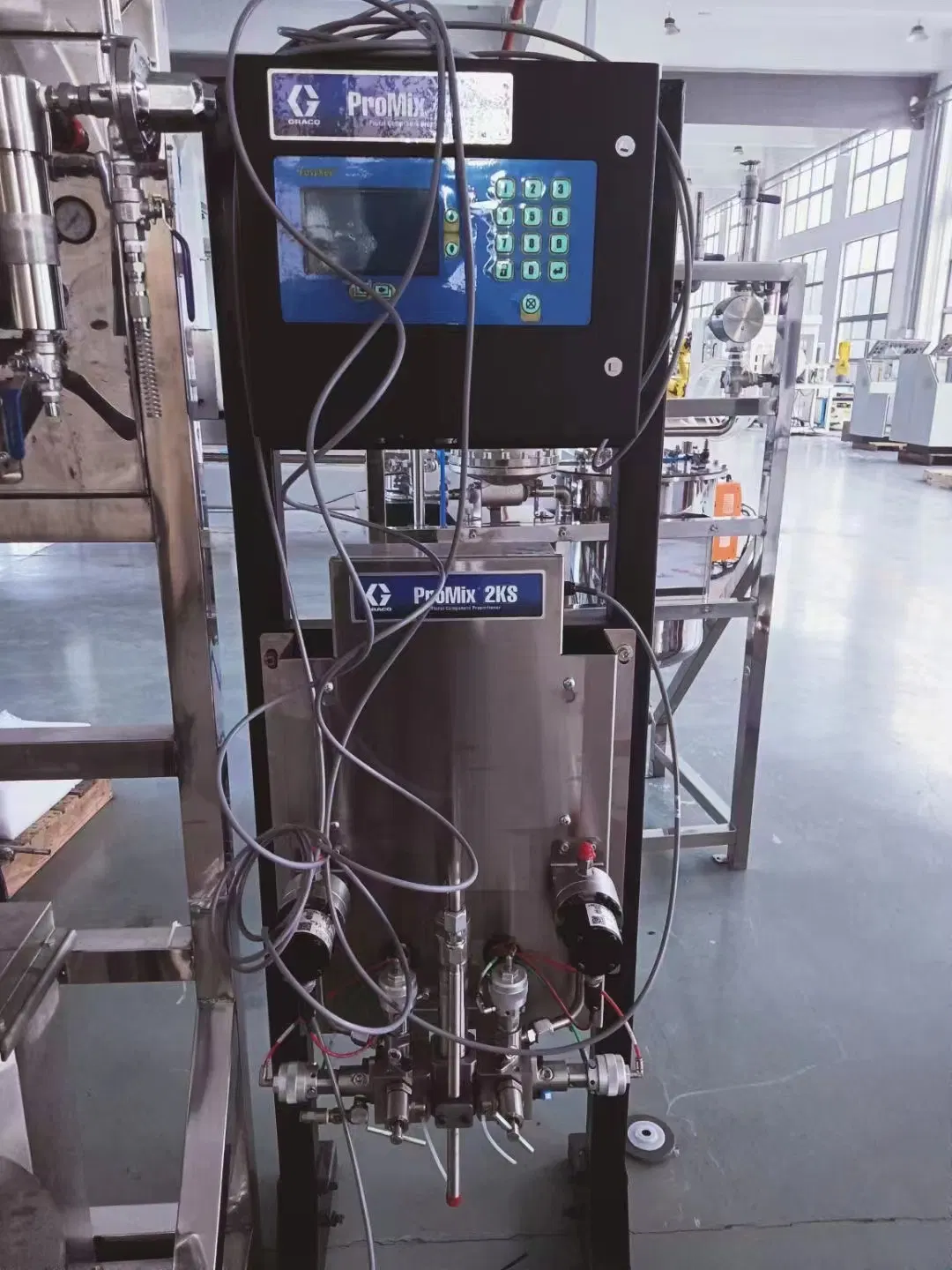

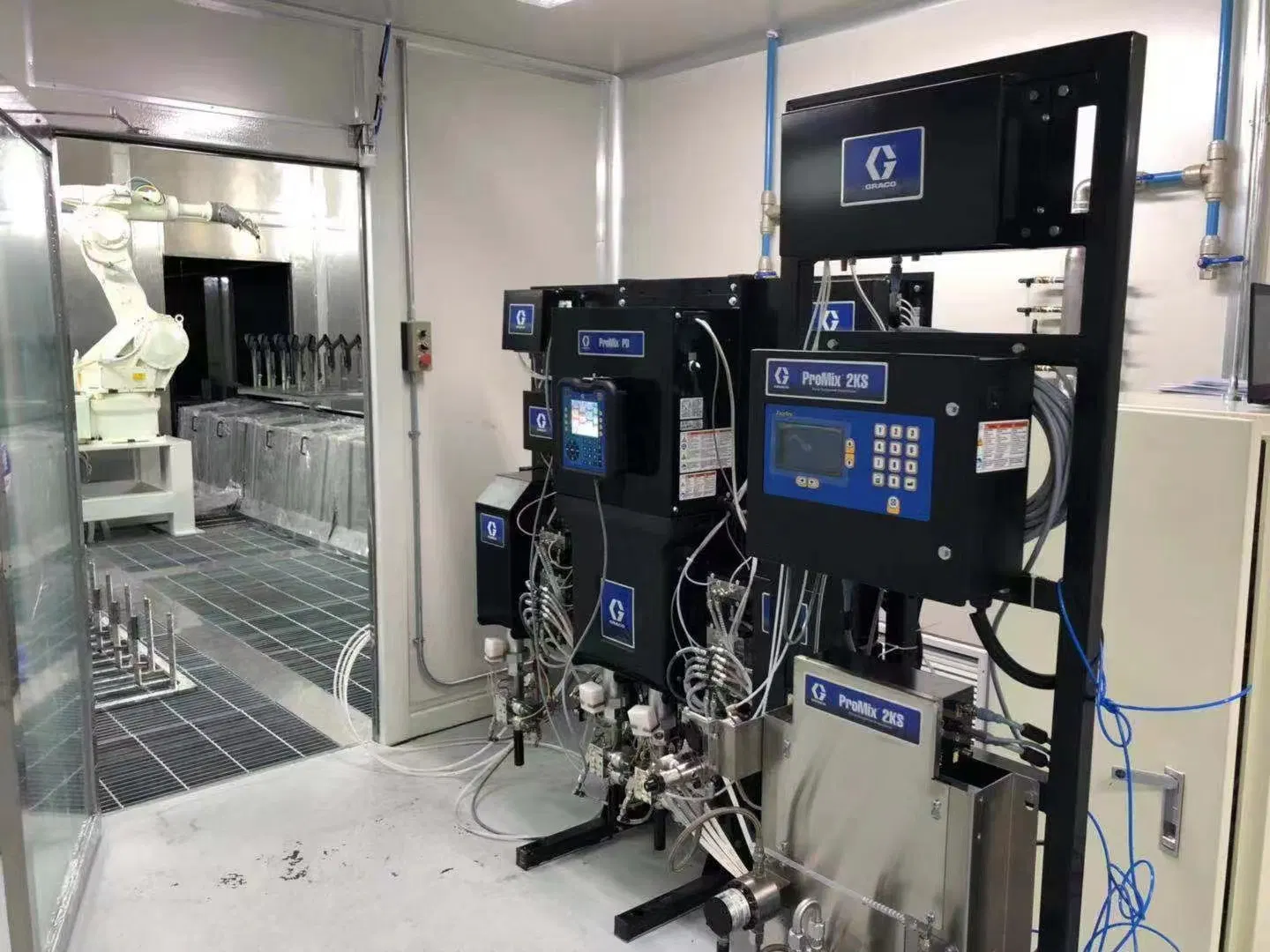

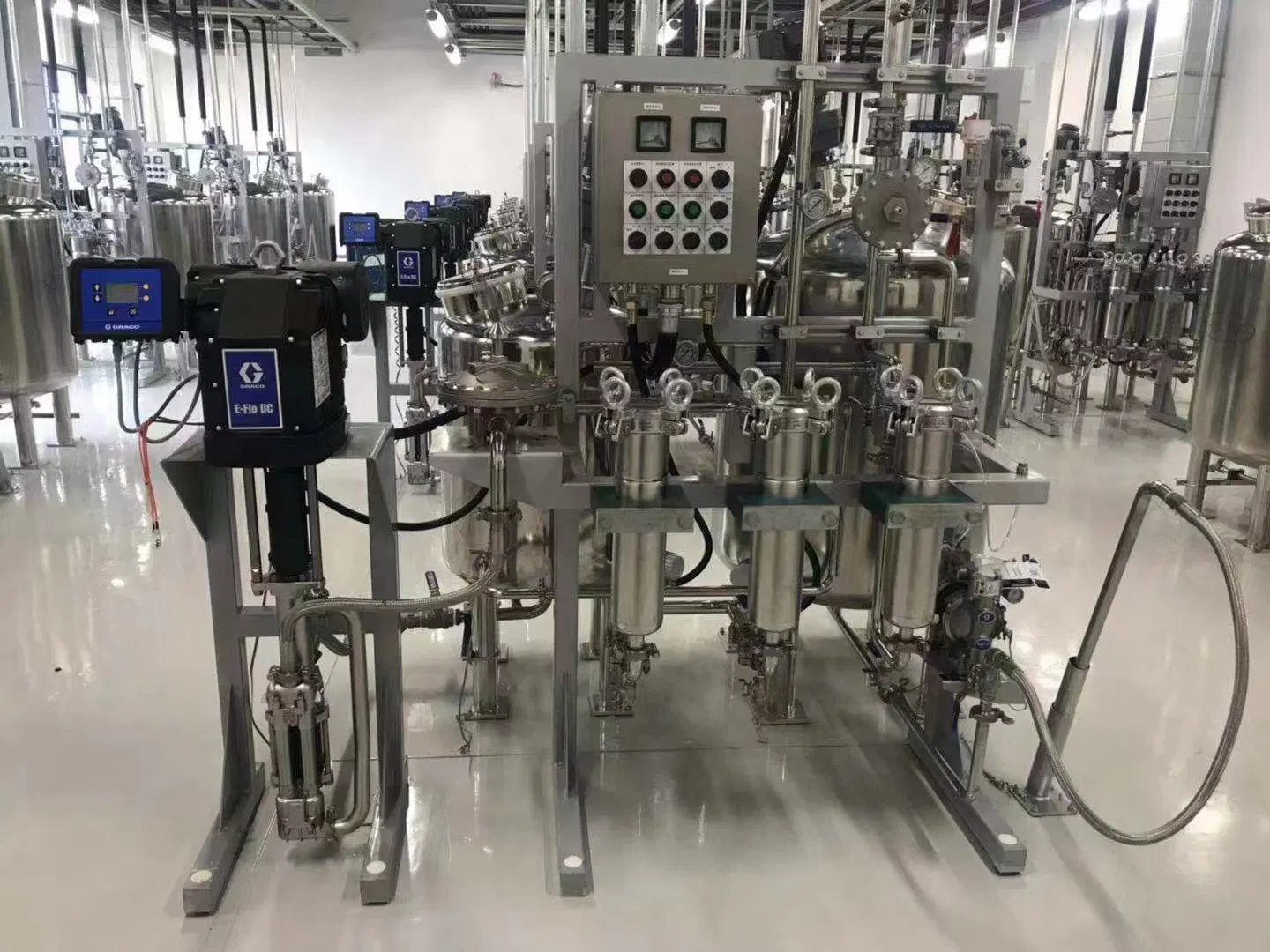

Paint Supply

Material delivery and color management planned for the approved coating system.

MODULE 04

Fixtures & Conveying

Repeatable part presentation supports stable robot paths and coating quality.

MODULE 05

PLC & Safety Control

Interlocks, zones, alarms and operator controls integrated into the production cell.

MODULE 06

Exhaust Treatment

Overspray and VOC collection are evaluated as part of the complete cell design.

Project-Specific Parameters

Configured by technical agreement

These are design inputs, not a fixed model specification. No standard dimensions, capacities or performance figures are asserted without a confirmed project drawing and calculation.

Maximum workpiece sizeDesigned to the approved workpiece envelope and handling method
Production capacityCalculated from takt time, shifts, loading and process dwell time
Coating and curing processSelected for the substrate, coating material and finish specification
Conveying methodOverhead, floor, accumulation, indexed or custom handling
Energy and controlsAgreed for available site utilities and the required control platform
Environmental systemSelected from coating material, exhaust condition and local requirements

The customer and engineering team confirm the destination country, installation site, applicable laws and standards, technical parameters and acceptance criteria in the signed project documents. Custom design does not by itself establish certification or legal compliance.

Applicable Workpieces

Designed around the product

Discuss the workpiece, substrate and finish with our team. These application areas are planning examples; the gallery photos may show other configurations.

Automotive parts
High-volume products
Complex geometries
Repeat production
Product Gallery

More views of this equipment series

Selected photos from the supplied product image library. These views may represent different projects and configurations.

Related Equipment References

See more documented views before requesting a design

These classified equipment photographs come from the supplied image library. Customer identity, installation date and process settings are not yet verified as case-study data.

Technical Evaluation

Bring your requirements to our engineering team

Request a project-specific layout and engineering scope for internal evaluation.

Request Engineering Scope

Planning robotic painting lines?

Send us your workpiece or process details, production target and factory layout for an application-specific proposal.
